All bathrooms are designed differently, and the Wall Mounted Shower Channel can be custom designed to suit the project at hand.

This channel is designed for either a three tiled wall design, two tiled wall/one glass wall, or one tiled wall and two glass walls. The integral flanges will always ensure the critical area of drainage is covered with the most trusted waterproofing material around – Stainless Steel.

See photos for some finished projects.

Material:

Grade 304 Stainless Steel (316 upon request), 1.5mm thickness
TIG Welded and water tested

Outlet options:

50mm, 65mm, 80mm, 100mm spigot with o’ring
50mm threaded

Outlet position:

Optional to suit project

With the channel’s position at the threshold to the shower, the required 1:50 fall of the floor within the shower will commence from the opposite wall and fall back towards the channel. The benefits of utilising this design is the fall will commence above the substrate floor level.  This can prove to be an easier option during installation as no floor joists will be compromised.

For any design queries for level threshold entry channels, please call to discuss your specific project and requirements.  All JESANI® channels are designed on a per project basis, so we are confident we can find a solution for you.

See photos for some finished projects.

Material:

Grade 304 Stainless Steel (316 upon request), 1.5mm thickness
TIG Welded and water tested

Outlet options:

50mm, 65mm, 80mm, 100mm spigot with o’ring
50mm threaded

Outlet position:

Optional to suit project

The Centre Shower Channel is an easy solution with minimal work required. The channel easily slots in with integral flanges surrounding the trough, thus full protection around the outlet is guaranteed. A simple solution to open up a shower area.

Material:

Grade 304 Stainless Steel (316 upon request), 1.5mm thickness
TIG Welded and water tested

Outlet options:

50mm, 65mm, 80mm, 100mm spigot with o’ring
50mm threaded

Outlet position:

Optional to suit project

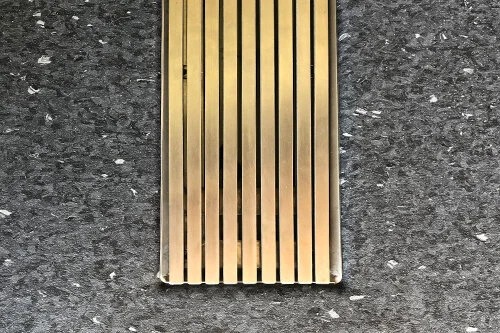

The vinyl clamping system for this Shower Channel is imperative due to its finished location in an open wetroom design. The channel is sitting in an open shower set up, whereby the vinyl termination around the trough edge is vital to ensure zero water ingress and to ensure the stability of the vinyl flooring composition.

These open shower wetrooms are generally designed with wheelchair access in mind. With the increased mobility traffic, the clamping system ensures the vinyl will not be compromised from continuous movement friction and the shower channel ensures no trip hazards.

Material:

Grade 304 Stainless Steel (316 upon request), 1.5mm thickness
TIG Welded and water tested

Outlet options:

50mm, 65mm, 80mm, 100mm spigot with o’ring
50mm threaded

Outlet position:

Optional to suit project
